Fully automatic nail heel machine

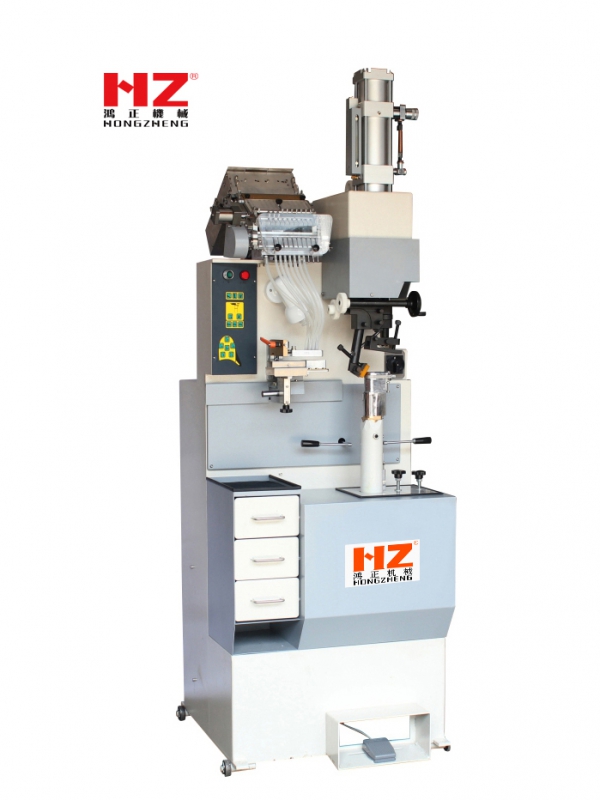

HZ-686 Fully automatic nail heel machine

①This machine is suitable for the nailing operation of any men‘s and women‘s heels, universal indenter, no need to customize.
②The gas and oil balance cylinders can automatically adjust the heel against any height and keep the heel from being damaged.
③Suitable for nails and screws of any length.Three nailing mode options, the heel will not split when nailing. And does not deform.
④ The angle of nailing can avoid penetrating the heel to achieve perfect product.
⑤The order of nailing can be arbitrarily selected in the time mode, and the effect is more pertect.
⑥The nail feeding mechanism has a safety mode to avoid damage to the shoes and to ensure the safety of the operator.
  • Description
  • Make an inquiry
    Model HZ-686
    Machine Size(L*W*H) L800*W720*H2000mm
    Packaging Size(L*W*H) L900*W850*H2100mm
    G.W. 450kg
    N.W. 415kg
    Voltage 220V/HZ
    Power 0.2KW
    Production 2000pairs
    Air pressure 0.6Mpa

    ①Strong Versatility: Suitable for all kinds of men‘s and women‘s heels. The universal indenter requires no customization, and it has a wide applicability for nails and screws.
    ②Heel Protection: The gas and oil balance cylinders protect the heels from damage. The nailing modes prevent the heels from splitting and deforming. Adjusting the nail angle avoids penetrating the heels.
    ③Perfect Effect: The order of nailing can be selected to achieve a more perfect effect.
    ④Safety Assurance: The safety mode of the nail - feeding mechanism ensures the safety of the operator and the shoes.
